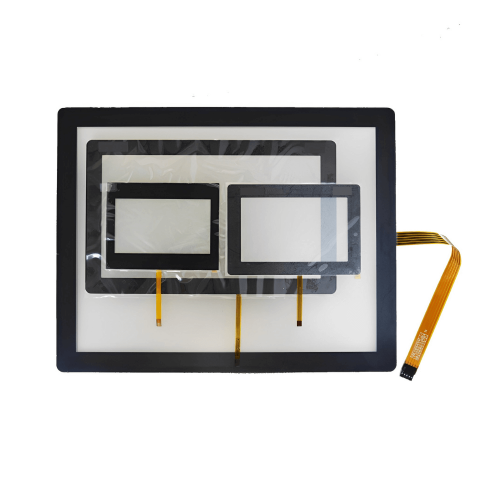

● Standard resistive touch panel sizes from 2.4” to 32".
● Single touch.
● Construction: Film-on-Glass / PET-Film-on-Glass or others.
● ITO Glass Thickness: 0.7mm, 1.1mm, 1.8mm, or custom.
● Interface: welding 1.0 pitch / plugging 1.0 pitch / 2.54 pitch USB interface.
● Input Method: Finger, Gloved Finger, Stylus.
● Activation Force: 0.1N to 1.0N depending on design.
● Surface Hardness: 3H or higher.
● Surface Treatment: Anti-Glare, matte, anti-newton ring and scratch options.
● Total touch solution including resistive touch panels, control board, firmware, and software.
| Size | Resolution | Image | Model NO. | Structure | IC Model | Active Area | Cover O.D | Cover thickness | Sensor Thickness | Interface | Surface Treatment | Custom |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

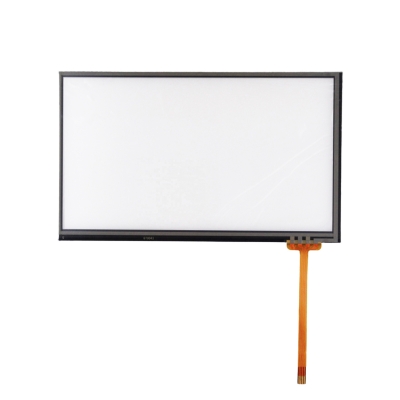

| 7.0" | 800x480/1024x600 |  |
HCT-070043-03 | Film to Glass | / | 155.68x87.52 | 164.30x99.00 | / | 0.70 | 4-wire USB | Matte, anti-newton ring | Available |

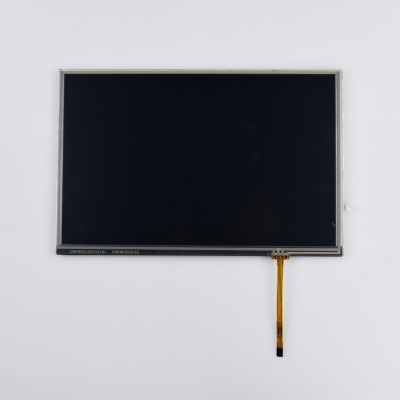

| 10.1" | 1280x800 |  |
HCT102A4K002-E | Film to Glass | / | 217.00x136.20 | 228.50x148.50 | / | 1.10 | 4-wire USB | Matte | Available |
| 10.4" | 1024x768 |  |
HCT-104Q506-R3 | Film to Glass | / | 212.00x159.40 | 234.00x178.00 | / | 1.80 | 5-wire USB | Matte, anti-newton ring | Available |

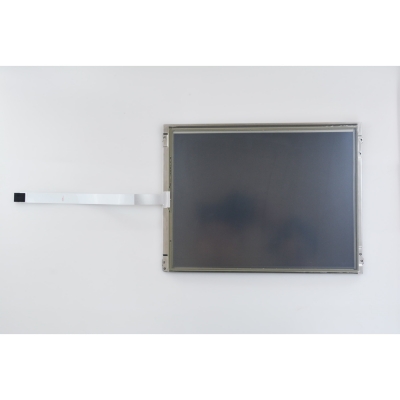

| 12.1" | 800x600/1024x768 |  |
HCT121A4B016-RS232 | Film to Glass | / | 246.00x185.00 | 266.60x204.00 | / | 1.80 | 4-wire USB | Anti-Glare | Available |
| 15.0" | 1024x768 |  |
MX-A15IL01-Q012 | Film to Glass | / | 305.00x229.00 | 346.00x270.00 | 0.25 | 1.80 | 5-wire USB | Matte | Available |
| 15.0" | 1024x768 |  |
HCT150A5B009-A | Film to Glass | / | 303.50x227.50 | 322.00x245.50 | / | 1.80 | 5-wire USB | Anti-Glare | Available |

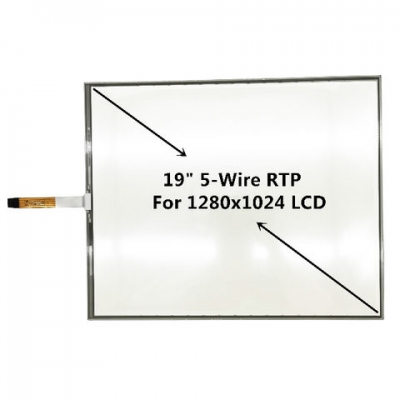

| 19.0" | 1280x1024 |  |
HCT190A5B003-A | Film to Glass | / | 375.00x300.00 | 396.00x323.00 | / | 1.80mm | 5-wire USB | Anti-Glare | Available |
