3.5-MAXEN - TFT LCD Display Manufacturer, LCD Panel Factory, Touch Screen Supplier

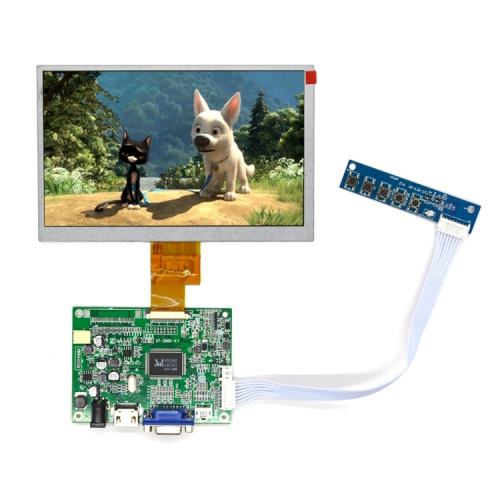

: 3.5" ~ 10.1" TFT LCD Modules with HDMI/VGA Driver Boards

This section primarily showcases TFT LCD Modules ranging from 3.5 inches to 10.1 inches, equipped with HDMI/VGA Driver Boards. HDMI excels in modern multimedia with high-definition digital signal, combined audio support, and widespread device compatibility, while VGA is primarily relevant for legacy devices due to its simplicity and long cable range. If you are interested in exploring more sizes or other types of TFT LCD Modules with HDMI/VGA Driver Boards, please feel free to contact our professional sales team for further information.

SEND INQUIRY

Size	Resolution	Model No.	Type	PIN	Interface	Brightness	Technology	Viewing Angle(T/B/L/R)	O.T	L.T	Outline Dimension	Active Area
3.5"	320x240	MX-035NT54-PB	TFT	/	AV (CVBS)	550 nits	IPS	80/80/80/80	-30~85 °C	50K Hr.	76.9063.903.20	70.08*52.56
4.3"	480x272	MX-043NR40-PB	TFT	/	VGA	350 nits	TN	45/50/70/70	-20~70 °C	50K Hr.	105.5067.203.00	95.04*53.86
5.0"	800x480	MX-050HR40-PB	TFT	/	VGA	500 nits	TN	70/50/70/70	-20~70 °C	50K Hr.	120.7075.903.05	108.00*64.80
7.0"	800x480	MX-070NR50-PB	TFT	/	HDMI	300 nits	TN	50/70/70/70	-20~70 °C	50K Hr	164.90100.003.50	154.08*85.92
8.0"	800x600	MX-080NR50-PB	TFT	/	HDMI	1000 nits	TN	50/70/70/70	-20~70 °C	50K Hr.	183.00141.005.80	162.00*121.50
8.4"	800x600	MX-084HL20-PB	TFT	/	HDMI	350 nits	TN	80/60/80/80	-20~70 °C	50K Hr.	203.00142.505.70	170.40*127.80
9.0"	1024x600	MX-090HR50-PB	TFT	/	HDMI	450 nits	IPS	80/80/80/80	-20~70 ℃	50K Hr.	210.70126.405.00	196.61*114.15
10.1"	1024x600	MX-101HR50-PB	TFT	/	HDMI	1000 nits	IPS	85/85/85/85	-20~70 °C	50K Hr.	235.00143.005.20	222.72*125.28

3.5" ~ 10.1" TFT LCD Modules with HDMI/VGA Driver Boards
